K-Nearest Neighbor: Where is the closest pharmacy?

Exercise 4: K1N

PostGIS

The exercise is the following:

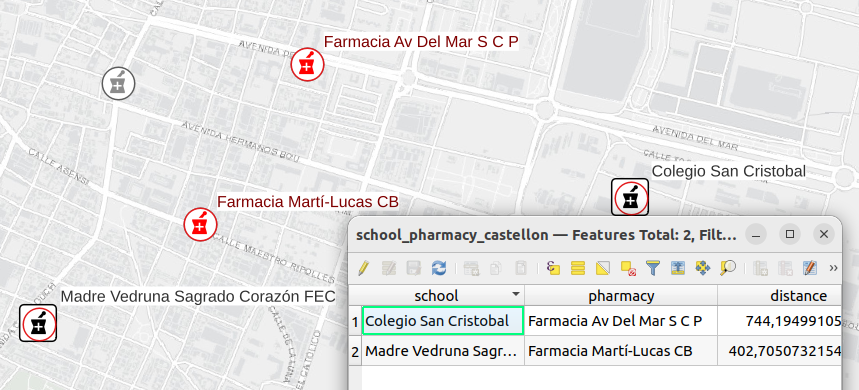

Exercise 4 - Determine which is the closest pharmacy to each school in Castellón de la plana.

Layers to be used:

• COLEGIOS_CASTELLON.shp
• farmacias castellon.shp

Import: Importing shp to PostgreSQL using SHP2PGSQL

Firstly, The geographic system of reference (parameter -s) for each .shp file is checked before finding out that it was 25830. Secondly, a terminal is opened in the directory where the shp file is located.

For schools:

shp2pgsql -D -I -s 25830 'farmacias castellon.shp' farmacias_castellon | psql -p 25432 -U docker -d gis -h localhost

For pharmacies:

 shp2pgsql -D -I -s 25830 -W "LATIN1" COLEGIOS_CASTELLON.shp colegios_castellon | psql -U docker -d gis -h localhost -p 25432

As a reminder, -D and -I indicates to dump the data instead of copying, and apply spatial Indeces to speed up queries. In the last case, -W indicate the font encoding, which was “LATIN1”. In other ocassion, for spanish speaker countries, ‘WINDOWS1252’ or ‘CP1252’ can be an option of the possible formats.

Transform: Obtaining the closest pharmacy using LATERAL

The LEFT JOIN LATERAL allowed to use data from the query next to subquery to for each pharmacy, find the closest school.

CREATE TABLE school_pharmacy_castellon AS
SELECT DISTINCT ON (c.name)
    c.name as school,
    f.name AS pharmacy,
    f.geom <-> c.geom AS distance,
    f.geom AS geom_pharm,
    c.geom AS geom_school
FROM colegios_castellon AS c
LEFT JOIN LATERAL
    (SELECT name,
                geom
     FROM
        farmacias_castellon AS f
     ORDER BY
        f.geom <-> c.geom
     LIMIT 1) AS f ON true

QGIS

Import plugin

Apply parameters

For IMFE: Málaga case

Import data

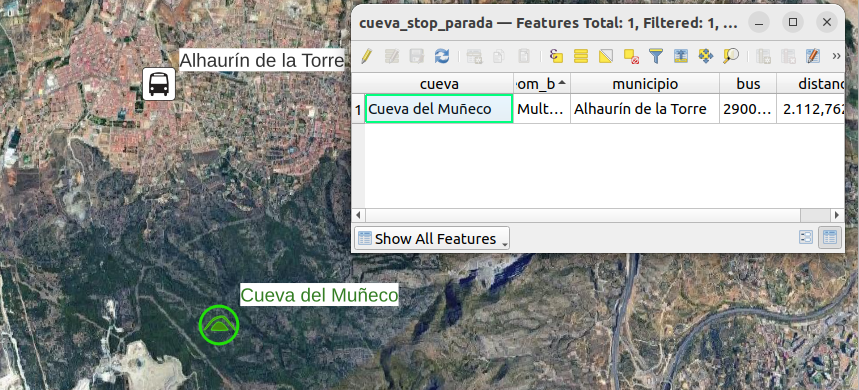

The exercise is slightly changed: Exercise 4 - Determine which is the closest bus stop to each cave in Málaga

• Bus stops (from the andalucian transport and communication’s WFS more WFS available at DERA )
• Caves

Query

CREATE TABLE cueva_stop AS
WITH agp_cuevas AS (
                    SELECT
                     nombre AS cueva,
                     municipio,
                     geom
                    FROM
                        ja_cavidad
                    WHERE
                        provincia ILIKE '%Laga'
                    AND
                        tipo = 'Cueva'
                    AND acceso = 'Horizontal'),
                    agp_bus AS (
                    SELECT
                        id_parada,
                        geom
                    FROM
                        "JA_bus"
                    WHERE
                        provincia ILIKE '%laga')
SELECT DISTINCT ON (cueva)
    agp_cuevas.geom AS geom_cueva,
    cueva,
    c.geom AS geom_bus,
    agp_cuevas.municipio,
    c.id_parada AS bus,
    agp_cuevas.geom <-> c.geom AS distance
FROM
    agp_cuevas
LEFT JOIN LATERAL
    (SELECT id_parada,
            geom
    FROM agp_bus
    ORDER BY
        agp_bus.geom <-> agp_cuevas.geom
    LIMIT 1) AS c ON true;
